XF86 configuration

New: updated for XFree 4.0.3.

The internal display is running at 1024x768 virtual. Fn - F7 gives you 1024x480 on both internal and external displays (usefull if you have a video projector which will sync to this resolution like the Proxima). Fn - F7 again and you have 1024x768 on the external display.

My /etc/X11/XF86Config-4 file

Section "ServerLayout"
           Identifier "XFree86 Configured"
           Screen 0 "Screen0" 0 0
           InputDevice "Mouse0" "CorePointer"
           InputDevice "Mouse1"
           InputDevice "Keyboard0" "CoreKeyboard"
EndSection

Section "Files"
           RgbPath "/usr/X11R6/lib/X11/rgb"
           ModulePath "/usr/X11R6/lib/modules"
           FontPath "unix/:7100"
EndSection

Section "Module"
           Load "extmod"
           Load "xie"
           Load "pex5"
           Load "glx"
           Load "dri"
           Load "GLcore"
           Load "dbe"
           Load "record"
EndSection

Section "InputDevice"
           Identifier "Keyboard0"
           Driver "keyboard"
           Option "XkbLayout" "us"
EndSection

Section "InputDevice"
           Identifier "Mouse0"
           Driver "mouse"
           Option "Protocol" "PS/2"
           Option "Device" "/dev/mouse"
EndSection

Section "InputDevice"
           Identifier "Mouse1"
           Driver "mouse"
           Option "Protocol" "IMPS/2"
           Option "Device" "/dev/input/mice"
           Option "ZaxisMapping" "4 5"
           Option "SendCoreEvents" "on"
EndSection

Section "Monitor"
           Identifier "Monitor0"
           VendorName "Sony"
           ModelName "LCD Panel"
           HorizSync 30-64
           VertRefresh 50-100
           Modeline "1024x480" 65 1024 1032 1176 1344 480 491 493 525
           -hsync -vsync
EndSection

Section "Device"
           Option "SWcursor"
           Option "internDisp"
           Option "externDisp"
           Option "ShadowFB"
           Option "pciBurst"
           Option "overrideValidateMode"
           Identifier "Card0"
           Driver "neomagic"
           VendorName "Neomagic"
           BoardName "NM2200"
           BusID "PCI:1:0:0"
EndSection

Section "Screen"
           Identifier "Screen0"
           Device "Card0"
           Monitor "Monitor0"
           DefaultDepth 16
               SubSection "Display"
               Depth 16
               Modes "1024x480"
               ViewPort 0 0
               Virtual 1024 768
               EndSubSection
EndSection

#Section "DRI"
#EndSection

Reboot and admire!

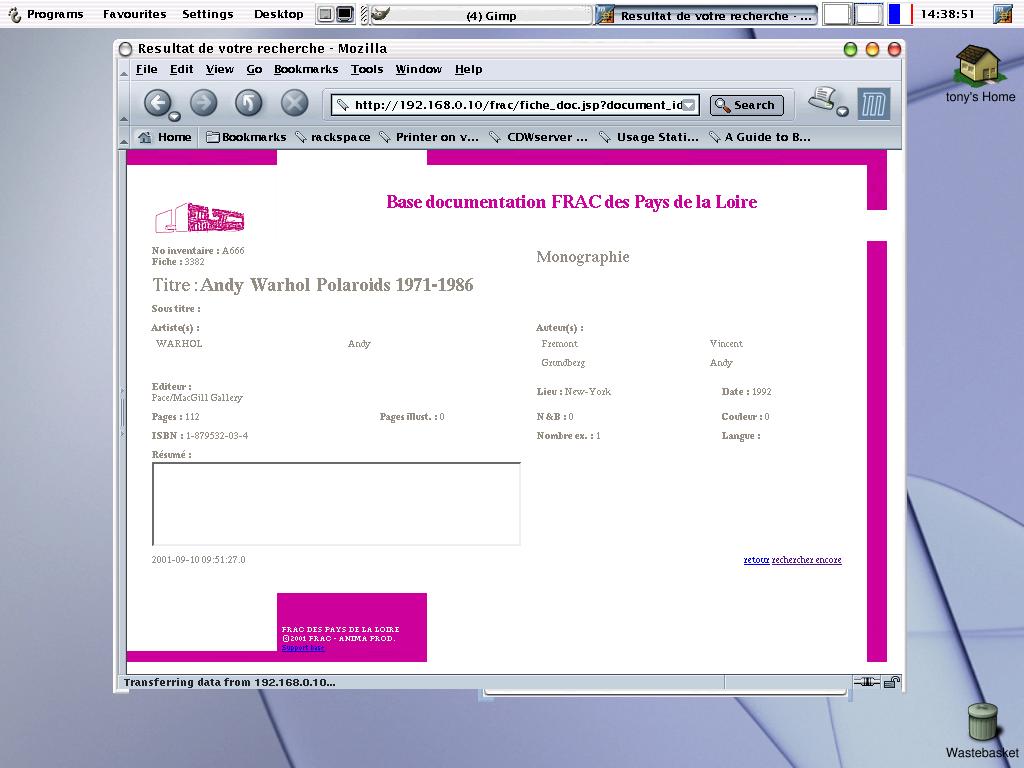

Current screen shot
